Itemnumber: UCF 322

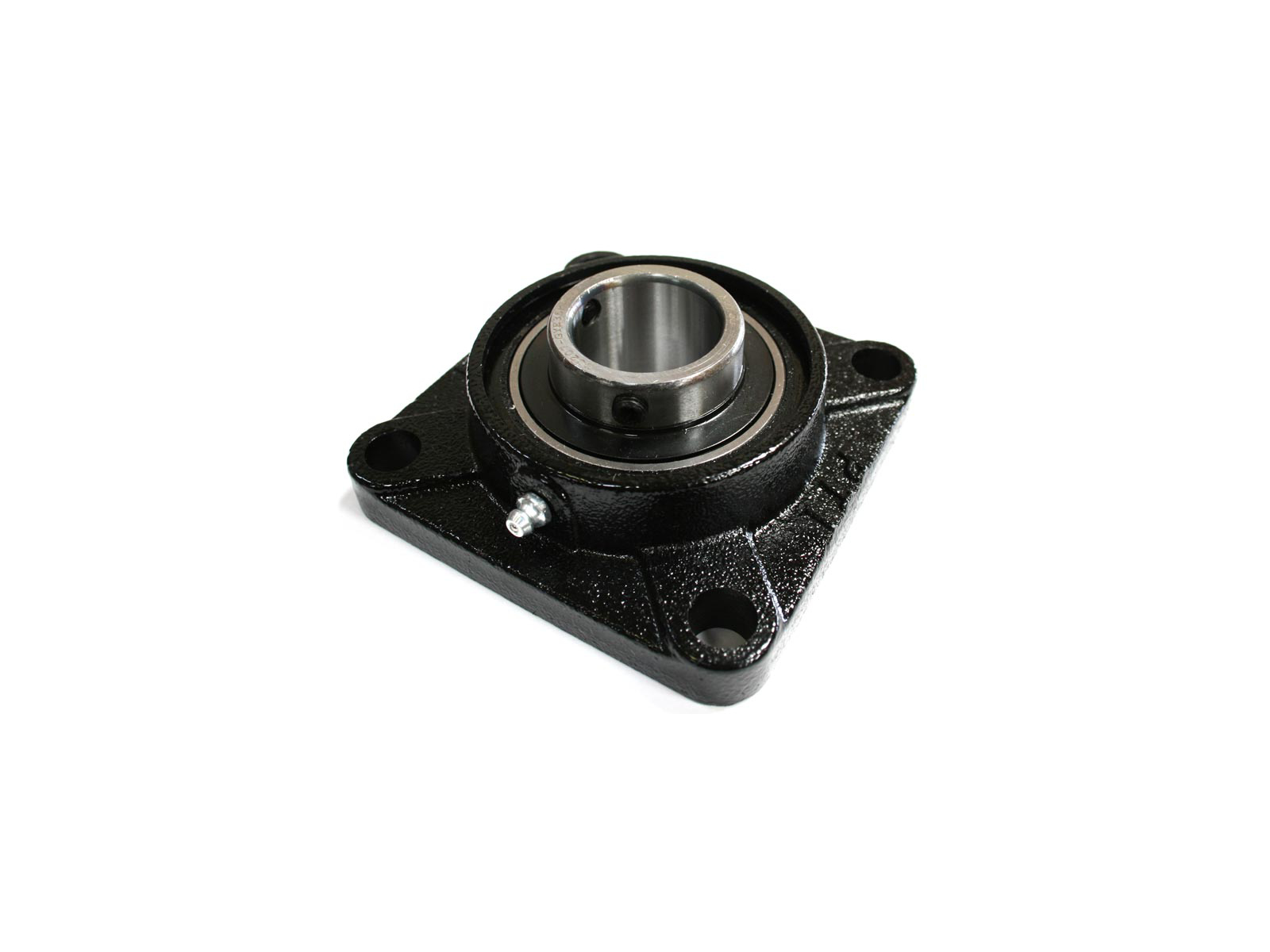

The image is an example of this product, size and and model can vary.
Our 4 bolt flanged bearings in the UCF series can be used in many applications, they are ready-to-install and easy to maintain. The extended inner ring is fixed to the shaft with 2 setscrews. In order for the ball bearing to be protected against moisture, dust and mechanical influences, it is equipped with rubber lip seals and a metal slinger on the outside.
The quality and quantity of lithium grease used in our ball bearings enables continuous operation in the temperature range from -30°C to 110°C. The bearing has a spherical outer ring, which means that the bearing can be easily replaced and compensate for angular errors in the construction. The bearing is maintenance-free during normal use, but can be relubricated if necessary.
Recommended shaft fit is h6-h9.
| Brand | PTI |
| Weight (gram) | 31,200.00 |
| Weight (kg) | 31.20 |
| Alternative item number | UCF322 |
| Tariff Number (KN8) | 84832000 |
| GTIN / EAN | 5713188402072 |
| Inner diameter (mm) | 110.00 |
| Material | Cast iron |
| Temperature range | -30°C to +110°C |
| Mounting bolt spacing (mm) | 266.00 |
| Shaft fastening type | Grub screws in inner ring |
