Itemnumber: EASYTHERM 2
The image is an example of this product, size and and model can vary.

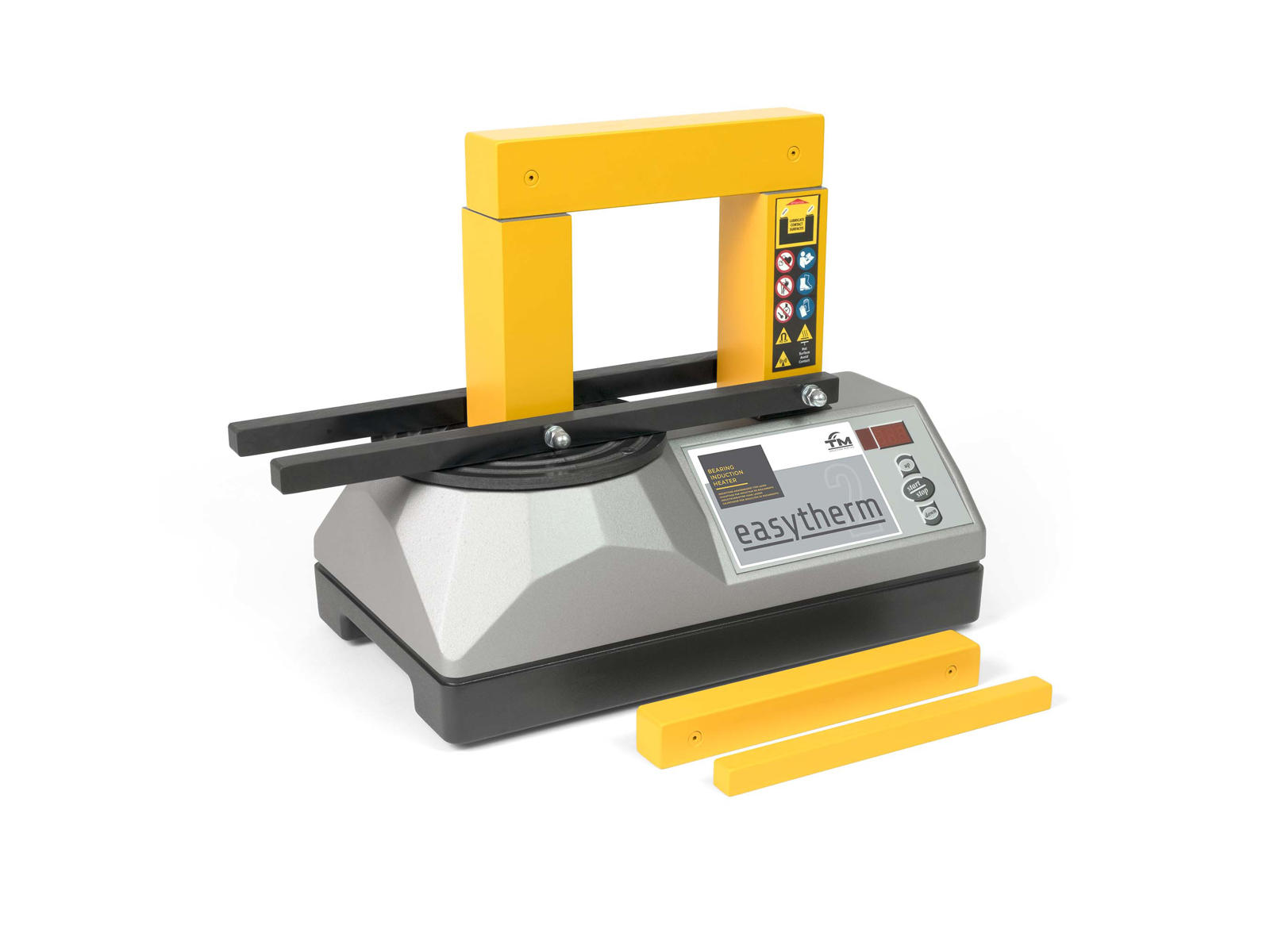

Easytherm 2 is a compact induction heater that, like the smaller ET1, can heat bearings with a minimum ID ø 10mm. The range of the Easytherm 2 is much larger however, it can heat up bearings with a max. mass of 40 kg and max. OD ø 290mm. Even with this wide range of possibilities our Easytherm 2 is very portable, due to its low weight. In the sturdy carrying case (optional), this induction heater is the ideal mobile service tool. The Easytherm 2 is a more efficient and versatile alternative to other portable solutions in the market. Very popular as a standard tool on ships.
The following yokes are included with Easytherm 2:
14 x 14, 25 x 24, 40 x 38. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 500 mm is included as well.
| Voltage | 115 / 230 V |
| Frequency | 50 / 60 Hz |
| Max. current | 13 A |
| Weight excl. yoke(s) | 14 kg |
| Footprint | 200 x 340 mm |
| Max. Temperature | 240 °C / 464 °F |
| Item Info | TM Induction Heater |
| Brand | TM |
| Weight (gram) | 17,000.00 |
| Weight (kg) | 17.00 |
| Tariff Number (KN8) | 84829900 |
| GTIN / EAN | 5713188166080 |
