Itemnumber: UCP 214

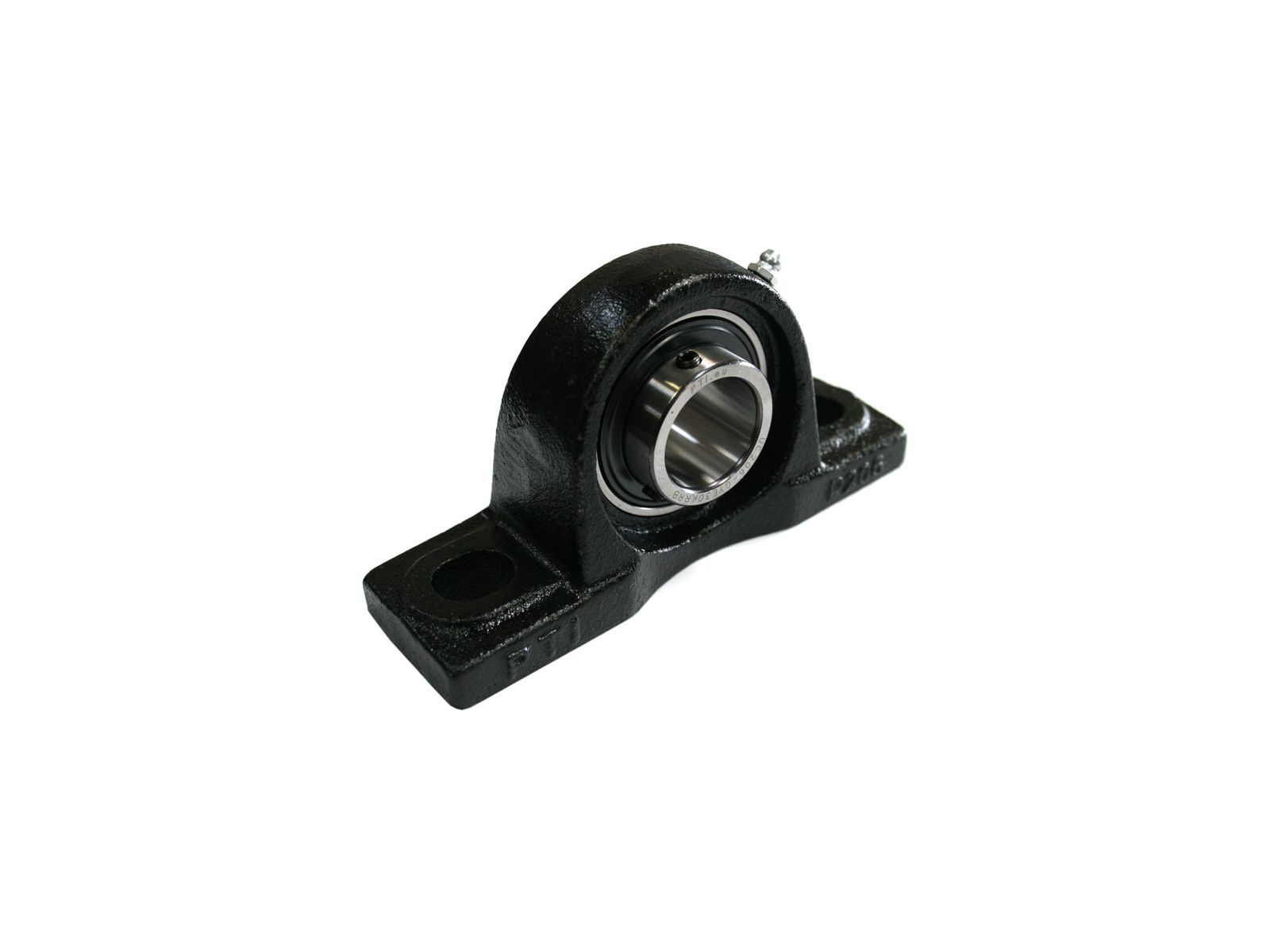

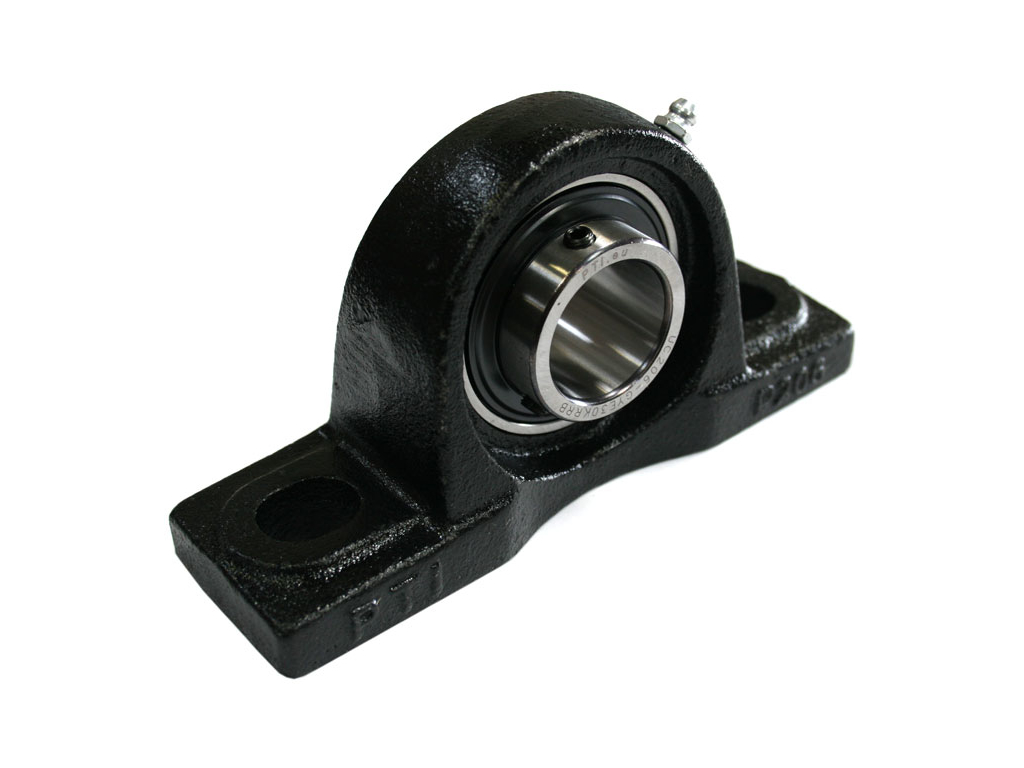

The image is an example of this product, size and and model can vary.
Our pillow block bearing units in the UCP series can be used in many applications, they are ready-to-install and easy to maintain. The extended inner ring is fixed to the shaft with 2 setscrews. In order for the ball bearing to be protected against moisture, dust and mechanical influences, it is equipped with rubber lip seals and a metal slinger on the outside.
The quality and quantity of lithium grease used in our ball bearings enables continuous operation in the temperature range from -30°C to 110°C. The bearing has a spherical outer ring, which means that the bearing can be easily replaced and compensate for angular errors in the construction. The bearing is maintenance-free during normal use, but can be relubricated if necessary.
Recommended shaft fit is h6-h9.
| Brand | PTI |
| Weight (gram) | 6,000.00 |
| Weight (kg) | 6.00 |
| Alternative item number | UCP214 |
| Tariff Number (KN8) | 84832000 |
| GTIN / EAN | 5713188404731 |
| Inner diameter (mm) | 70.00 |
| Material | Cast iron |
| Temperature range | -30°C to +110°C |
| Mounting bolt spacing (mm) | 210.00 |
| Height to center of the shaft (mm) | 79.40 |
| Shaft fastening type | Grub screws in inner ring |
