Itemnumber: XPA3550

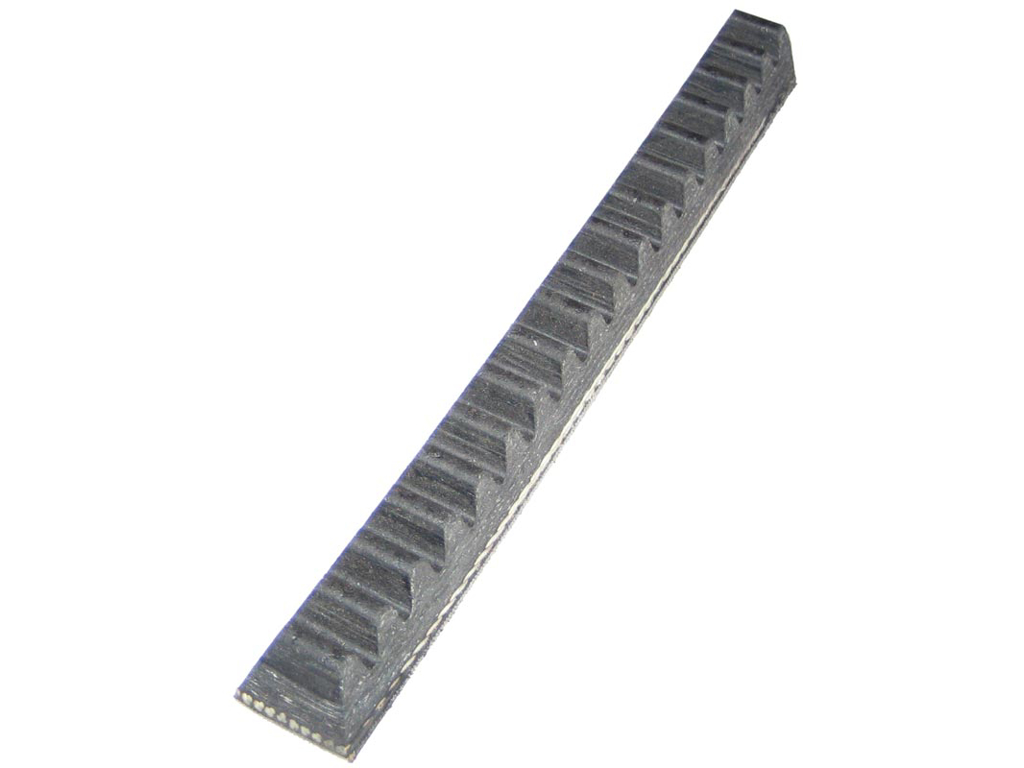

The image is an example of this product, size and model can vary.
optibelt SUPER XE-POWER PRO
Compact: Performance on the smallest pulleys
The new tooth form, developed through FEM modulation and practical tests, continues to enable very small minimum pulley diameters for internal pulleys. In addition, the optibelt SUPER XE-POWER PRO M=S is now also suitable for external pulleys. This is the prerequisite for designing more compact drive units.
Totally versatile: Anything but conventional
The optibelt SUPER XE-POWER PRO M=S can be used in any application and is predestined for machine and special machine construction: ideal for compressors, fans, pumps, lathes and drills and all other application scenarios where compact drive systems are required.
Temperature-resistant: Hot for maximum performance
In the case of the optibelt SUPER XE-POWER PRO M=S, this applies in the truest sense of the word: Thanks to its extraordinary temperature resistance, it delivers optimum power transmission in a temperature range from -40 °C to +120 °C - even and especially with small pulley diameters or high motor speeds.
- Fit for back idlers
- Very quiet running at very high torque levels
- M=S Set Constant
- Maintenance free
- + 20% power to optibelt SUPER X-POWER M=S
- Temperature range -40°C to +120°C
| Item Info | XPA/12,7 x 3550 |
| Brand | Optibelt |
| Weight (gram) | 315.00 |
| Weight (kg) | 0.32 |
| Alternative item number | XPA 3550 XEP SPAX3550 |
| Tariff Number | 4010390090 |
| GTIN / EAN | 4044978162038 |
| Temperature range | -40°C to +120°C |
| Belt inner length (mm) | 3505 |
| Belt outer length (mm) | 3568 |
| Belt length NORM (mm) | 3550 |
| Belt width (mm) | 12.70 |
| Belt height (mm) | 10 |
| Belt type | Cogged Raw Edge V-Belt |
