Itemnumber: T10-32

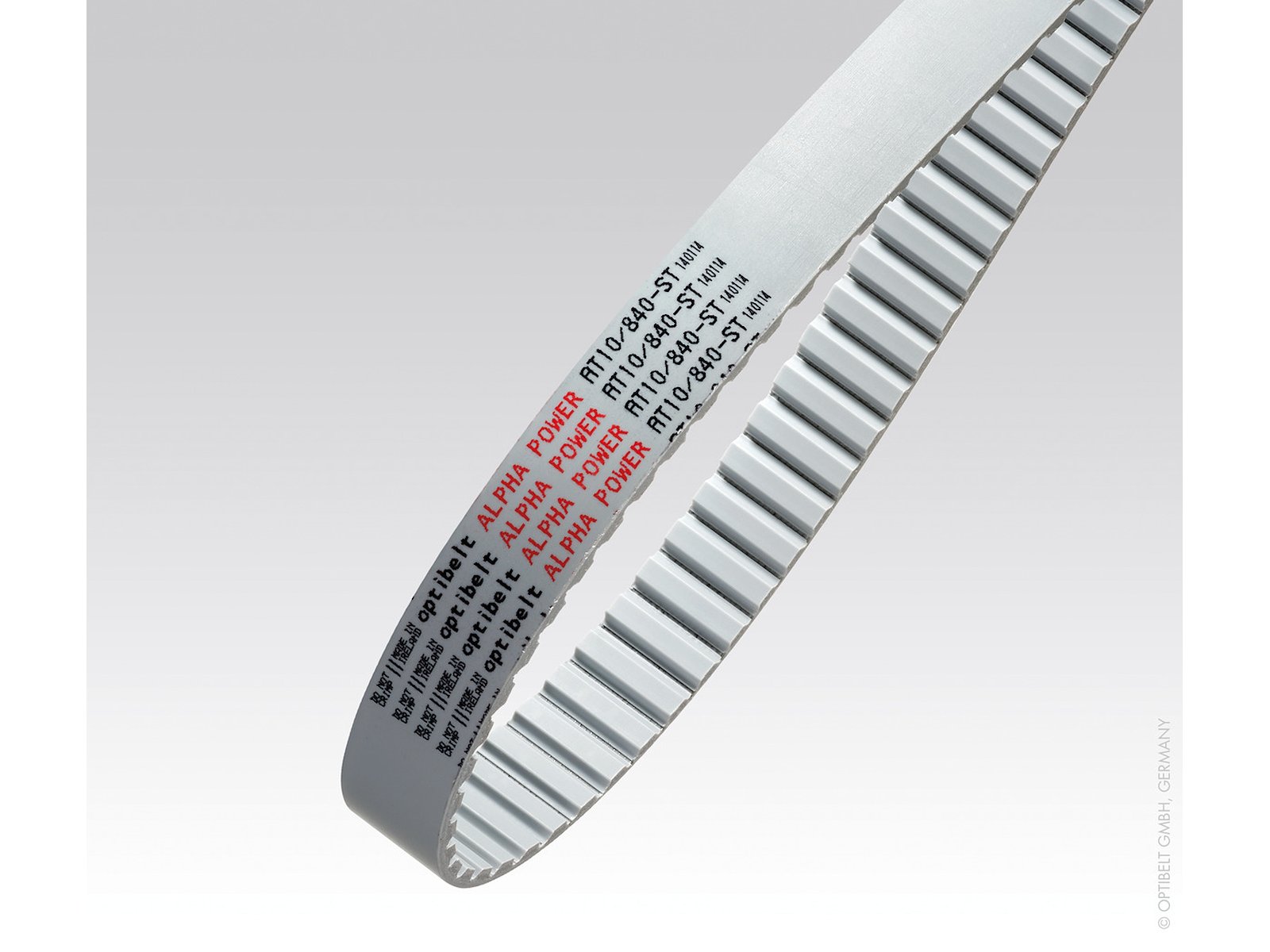

The image is an example of this product, size and model can vary.
optibelt ALPHA LINEAR – Steel
Timing belts made of polyurethane – linear
For linear drives
Finite optibelt ALPHA LINEAR timing belts are made of extruded, thermoplastic polyurethane and edge-parallel tension members. They are dimensionally stable and ideally suited for linear drives thanks to their precise positioning.
Individually customizable
In an additional, downstream extrusion process, transparent polyurethane with a hardness of 85 Shore A with the designation T2 or PU foam yellow and other materials and designs can be applied directly to the belt as an alternative to the "reinforced back" version.
Flexible use
The optibelt ALPHA LINEAR timing belt can optionally be fitted with a thin fabric on the tooth side to minimize friction or noise. A backing fabric is also possible.
| Item Info | Optibelt Alpha Linear |
| Brand | Optibelt |
| Weight (gram) | 200.00 |
| Weight (kg) | 0.20 |
| Tariff Number | 4010350000 |
| GTIN / EAN | 5713188418882 |
| Material | Polyurethan |
| Temperature range | -30°C to +80°C |
| Pitch (mm) | 10 |
| Belt width (mm) | 32 |
| Belt height (mm) | 4.50 |
| Belt type | T10 |
