Timing Belt DT5
Itemnumber: DT5-410-16
Itemnumber: DT5-410-16

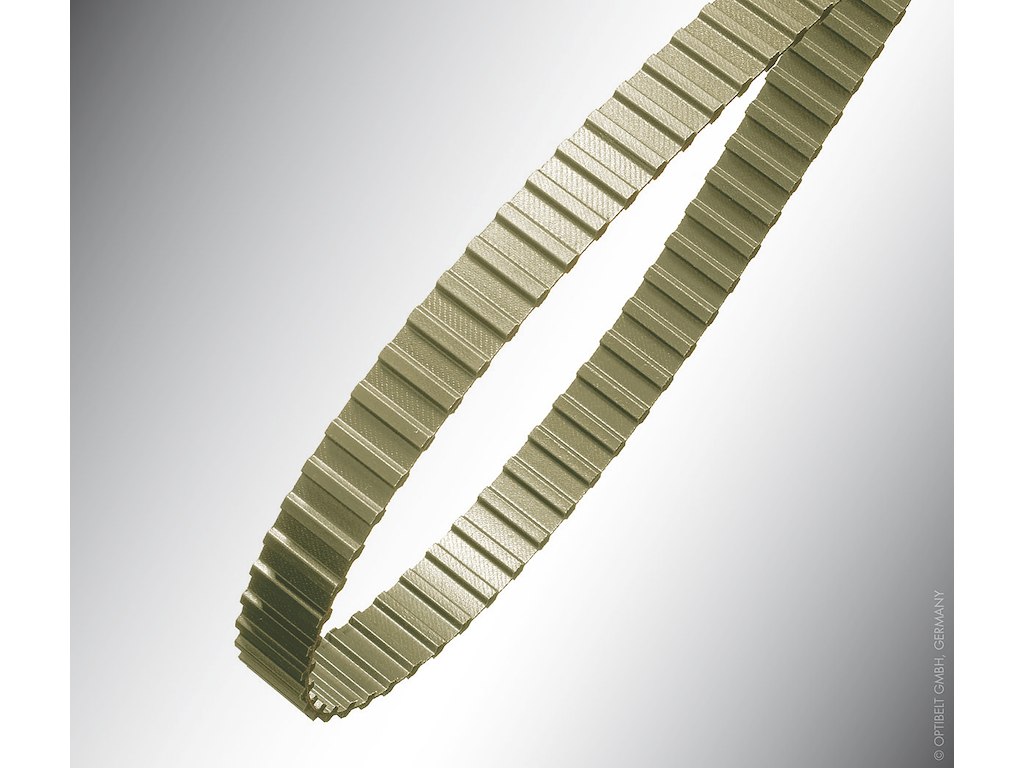

The image is an example of this product, size and model can vary.
optibelt ALPHA TORQUE
Timing belt, maintenance free, cast polyurethane, steel cord.
Oil-resistant
The good oil resistance for polyurethane is one of the basic features of the optibelt ALPHA TORQUE, as is a certain resistance to acids and alkaline solutions.
Versatile use: equipment for a wide range of applications
The optibelt ALPHA TORQUE can be equipped with tension members such as steel, highly flexible steel, stainless steel, aramid, polyester and Vectran for a wide range of applications.
Standard sales price EUR 49.81
EUR 28.89
/ pcs
EUR 23.11 ex. VAT
| Item Info | Optibelt Alpha Torque, Double Profile |
| Brand | Optibelt |
| Weight (gram) | 16.00 |
| Weight (kg) | 0.02 |
| Alternative item number | 16 DT5 / 410 |
| Tariff Number | 4010350000 |
| GTIN / EAN | 4014486065442 |
| Material | Polyurethan |
| Temperature range | -30°C to +80°C |
| Pitch (mm) | 5.00 |
| Teeth | 82.00 |
| Belt length NORM (mm) | 410.00 |
| Belt width (mm) | 16.00 |
| Belt height (mm) | 3.31 |
| Belt type | DT5 |
