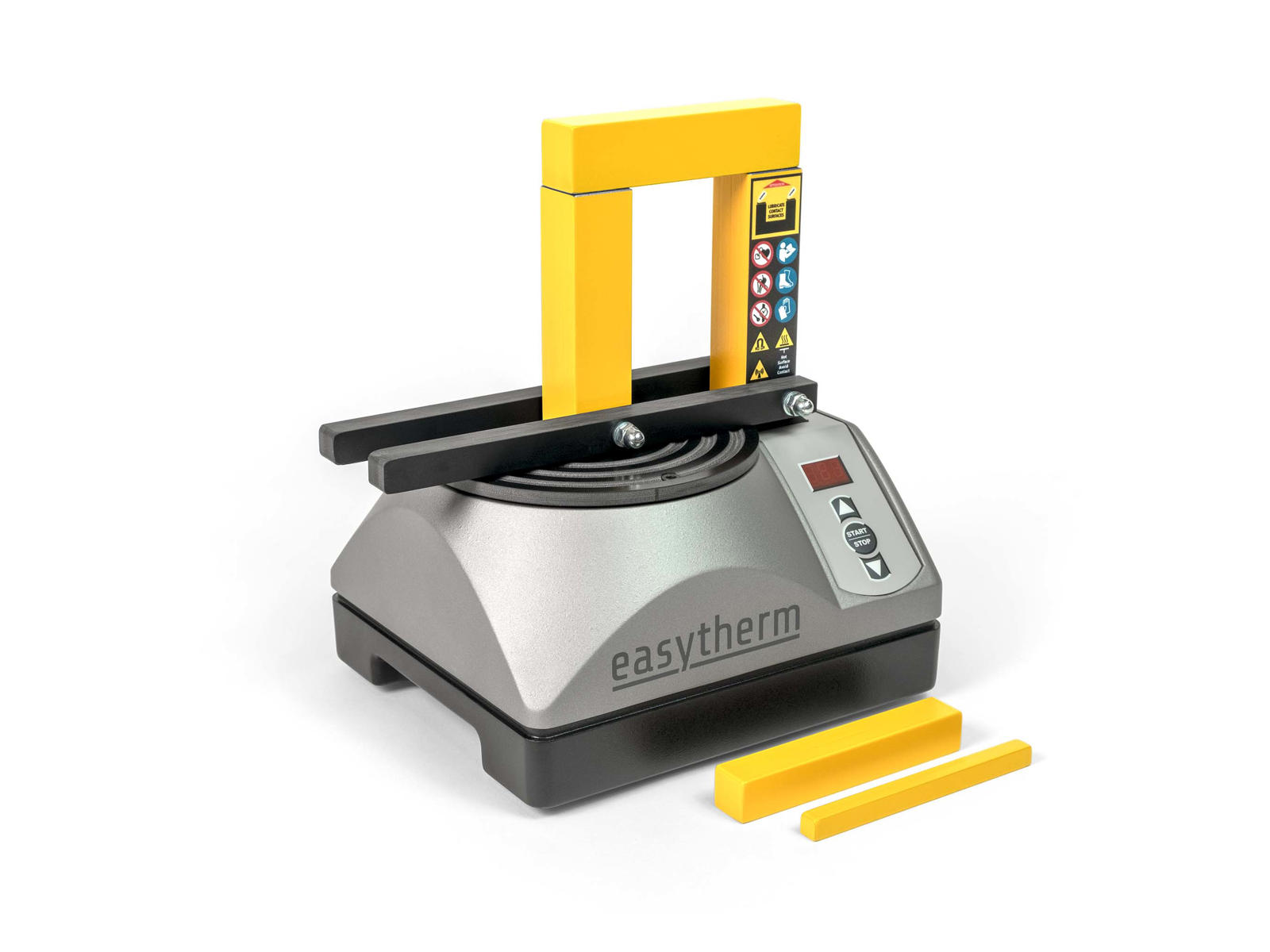

Billedet er et eksempel af dette produkt, størrelse og model kan afvige.
The smallest Easytherm induction heater is the right choice for heating the smallest bearings (min. ID ø 10 mm, max. weight 10 kg). Small bearings are often mounted with tools based on impact, while small bearings are very sensitive to axial forces. With the Easytherm 1 induction heater, correct mounting of the smallest bearings is possible without damage.
The following yokes are included with Easytherm 1:
10 x 10, 20 x 20, 30 x 26. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 500 mm is included as well.
Voltage | 115 / 230 V |
Frequency | 50 / 60 Hz |
Max. current | 10 A |
Weight excl. yoke(s) | 9 kg |
Footprint | 230 x 200 mm |
Max. Temperature | 240 °C / 464 °F |
datasheet_easytherm_1.1.pdf | 280.00 Kb |
Vare Info | TM Induction Heater |
Fabrikat | TM |
Vægt (gram) | 9.000,00 |
Vægt (kg) | 9,00 |
Alternativt varenummer | Lejevarmer |
Toldtariff nummer (KN8) | 84829900 |
GTIN / EAN | 5713188166073 |
